Schedules

Event overview and key times

Welcome, and thank you for helping with the A/V work for our assembly.

Venue: Imperial World Samrong, Samut Prakan — 6th floor
Assembly: Sunday, 11 October 2026
Setup: Saturday, 10 October 2026
Contacts: JP Bourgeois, A/V overseer · Alex Li, audio overseer · Jeff Korell, stage overseer
Emergency: 093-019-4124 — Bo Nielsen, assembly overseer

When	What is planned
Friday 9 October, 16:30	Safety briefing at the venue (6th floor), led by Trucking; time tentative.
Friday, 16:45	Kingdom Hall truck delivery. Help move the equipment to the 6th-floor hall.
Friday, 17:45	Bethel (LBD) A/V truck delivery.
Saturday 10 October, 08:00	Safety talk and prayer inside the venue, led by JP. Then the five teams begin setup.
Saturday, by 12:00	Target for setup to be finished so Alex can commission and test the sound system.
Saturday 10 October, 14:00	Walk-throughs for the first session, second session, and pioneer meeting A/V and Stage, led by JP.
Saturday, 15:00	Special meeting with pioneers. See the pioneer meeting page.
Sunday 11 October — walk-throughs	Morning session starts at 08:10; afternoon session starts at 08:25. Led by JP.
Sunday 11 October, 09:40 / 13:20	Morning / afternoon music begins. See Sunday assignments and cues.
Sunday, after the program	Note the actual end time. The teardown safety meeting and prayer begins 30 minutes later. Wait for that meeting before dismantling.

Your keyman or overseer will confirm your reporting time.

Still to be confirmed: Friday crew, Friday safety-briefing time, Sunday reporting time, Sunday teardown meeting leader, packing area, and return truck time.

Useful links: Shared crew folder · Live roster · CABR-2026 schematics · S-343 Stage Layout

Note:
The roster's April schedule tab belongs to an earlier event. Please use the times in this book.

Saturday pioneer meeting — 15:00

Special meeting with pioneers: Saturday, 10 October 2026 at 15:00, at the same venue.
Theme: “Enrich Your Ministry by Setting Goals!” — Proverbs 4:25

Stage Layout (S-343) PDF — open / download copy DOCX — open / download copy PDF updated from the DOCX on 7 October 2026.

We aim to finish installation by 12:00. Alex will then commission the audio system, adjust the venue wireless microphones, and test the media and projector connection.

Audio

Position	Assigned person
Mixer operator	Marcel Lewandowski
Mixer assistant	Adam Brier
Media operator	Mike Mundell

Stage

Position	Assigned person
Chairman side mic (Stage right)	Josh Norton
Chairman side headset (Stage right)	Josh Norton
Participant side mic (Stage left)	Gerald Berard
Participant side headset (Stage left)	Corey DeLoach
Audience participation mic runner	Ruben Martinez and Jeff Korell

Before the meeting: Everyone assigned above should attend the walk-through. Test the microphones from the actual speaking positions and listen from different parts of the seating area.

The venue is lending at least two wireless microphones. The A/V Booth team will collect them before commissioning. They are sensitive, so Alex will carefully adjust them before use.

Walk-through: Saturday, 10 October at 14:00, led by JP. Reporting time, if different, will be confirmed by your keyman or overseer.

Sunday program assignments and A/V cues

Stage Layout (S-343) PDF — open / download copy DOCX — open / download copy PDF updated from the DOCX on 7 October 2026.

The live roster is the assignment source.

Audio

Position	Morning	Afternoon
Mixer operator	Ronan Gav Budd	Kassander Jensen
Mixer assistant	Adam Brier	Mike Mundell
Media operator	Marcel Lewandowski	Yuri Chaplygin
Backup	Dern	Lacey Cox

Stage

Position	Morning	Afternoon
Stage key man	Jason Kirby	Matthew Chappelle
Chairman side mic (Stage right)	Gerald Berard	Corey DeLoach
Chairman side headset (Stage right)	Jason Kirby	Matthew Chappelle
Participant side mic (Stage left)	Ruben Martinez	Josh Norton
Participant side headset (Stage left)	Mike Vigil	Jeff Korell

Before the walk-throughs: The Stage team, mixer operator assistant, and media operator should review the Stage Layout (S-343) above. The AV overseer and his assistants should also be familiar with it.

Walk-throughs (led by JP): Saturday, 10 October — first session, second session, and pioneer meeting at 14:00. Sunday, 11 October — morning-session walk-through starts at 08:10; afternoon-session walk-through starts at 08:25. Sunday arrival/reporting time is still to be confirmed.

What each A/V role does

• Mixer operator (CO-160 2:15): Controls microphone and media levels and listens for feedback or other problems.
• Mixer assistant (CO-160 2:16): Follows the program, warns the mixer operator about the next change, and helps communicate instructions.
• Media operator (CO-160 4:26): Runs only the approved media and keeps the second computer ready as backup.
• Audio backup (CO-160 2:15-16): Knows the setup and can step in if someone needs help or cannot continue.
• Stage team (CO-160 3:3-4; Appendix F): Places microphones, gives participants the required reminders, and follows the agreed stage cues.

Main program cues

Printed time	Item	A/V preparation
09:40	Morning music	Start the approved music and check the playback level.
09:50	Song 7 and prayer	Follow the chairman and the actual stage cue.
10:55	Song 37 and announcements	Prepare the approved media and the next microphone position.
11:35	Baptism talk	Confirm microphone needs and baptism-area arrangements with Jeff.
12:05	Song 38, then lunch	Mute program microphones and display the agreed theme artwork.
13:20	Afternoon music	Start the approved music.
13:35	Experiences	Stage and mixer confirm the participant microphones.
14:15	Symposium	Prepare the speaker and stage microphone changes.
15:00	Song 88 and announcements	Follow the actual cues.
15:55	Song 161 and prayer	The program ends after the song and prayer. Note the actual end time.

Display the theme artwork before each session, during lunch, and for about 30 minutes after the program. Before the chairman begins, play only the approved music; do not make announcements over the system unless there is an emergency.

Before attendees are admitted, test both media computers, all microphones, every loudspeaker, and the venue projector link. The mixer operator and Alex should listen from several seating areas and agree on what to do if a microphone, computer, or other part fails.

After the final prayer, wait for the teardown safety meeting and prayer 30 minutes after the actual end. Let the audience leave before lowering speakers or pulling cables.

Setup instructions

Setup teams and handoffs

Thank you for helping with the assembly setup on Saturday, 10 October. This is the best page to start from. Find your team below, then open that team's page for the detailed instructions.

Before setup:
Everyone helping with installation or dismantling — including helpers who are not normally part of A/V — should download and review A-149-E (PDF). Each A/V keyman will also review the team's DC-83 job hazard analysis before work begins.

Key times for Saturday

• 08:00 — Meet at the venue for the safety talk and prayer. Keymen then review the DC-83 and work area with their teams.
• After the talk — Power, Audio Cabling, Loudspeakers, Stage and A/V Booth begin together.
• By 12:00 — Installation should be ready to hand over to Alex for commissioning and system tests.
• By 14:00 — AHEC commissioning should be complete so attendees can enter.

Find your team

Your team page has the drawings and step-by-step instructions.

• Audio Cabling — Lacey Cox 🔑
  Ruben Martinez; Zabrina Bourgeois; Karina Li; Layo Kirby; TaSanee Kirby; Meyana Barnhart; Ittikorn "Joeu"; Pinja Keskinen; Bethany Mundell; Sebastien Machez
• A/V Booth — Micah Phillips 🔑
  Mint Phillips; Brendan Coonce
• Stage — Jason Kirby 🔑
  Gerald Berard; SuMalei Kirby; Matthew Chappelle
• Loudspeakers — Corey DeLoach 🔑
  Melissa DeLoach; Mike Vigil; Lilia Vigil; Mike Mundell; Malachi Jenkins
• Power — Jeff Korell 🔑
  April Korell

Come prepared: Wear suitable work shoes and bring work gloves. Follow your keyman's instructions if additional PPE is needed.

If you are also helping with Friday delivery or unloading, see Friday transport and Saturday installation.

If you are unsure which team you are on, please ask JP before starting work.

How teams help each other

Start early on the booth power, 30 m AMC-3 audio multicore (snake) cable, the six passive loudspeakers with their speakON cables, and the Stage team's XLR microphone cable runs. This lets testing begin while smaller tasks are still being finished.

When your team is finished: Stage, Loudspeakers and Power should check with Lacey and help Audio Cabling with the remaining cable work until it is ready for testing.

Keep exits and walkways clear, protect every floor crossing, and ask your keyman if anything in the room does not match the current drawing.

For Sunday, use the confirmed dismantling teams and instructions. Follow the teardown safety meeting and your dismantling keyman.

Schematics and equipment overview

The CABR-2026 schematic is the drawing set for this assembly. Download the full PDF. The October BOM is the equipment list.

If you are a crew member, you do not need to memorize this page. Follow your keyman and your team's short instructions. Keymen use the exact measurements and connections below.

Important:
If the room does not match the drawing, stop and tell JP or Alex. Do not change the design on your own. Any change that affects the approved design must be confirmed through LBD.

Sheet	What it shows	Main teams
1-1	Seating and six passive-loudspeaker positions	Loudspeakers, Audio Cabling, A/V Booth
4-1	Stage microphones, monitors and power routes	Stage, Power, Audio Cabling, Loudspeakers
6-1	A/V booth and audio connections	A/V Booth, Audio Cabling, Stage
6-2	Passive and active loudspeaker connections	Loudspeakers, Audio Cabling, Power

View Sheet 1-1 — seating and loudspeakers

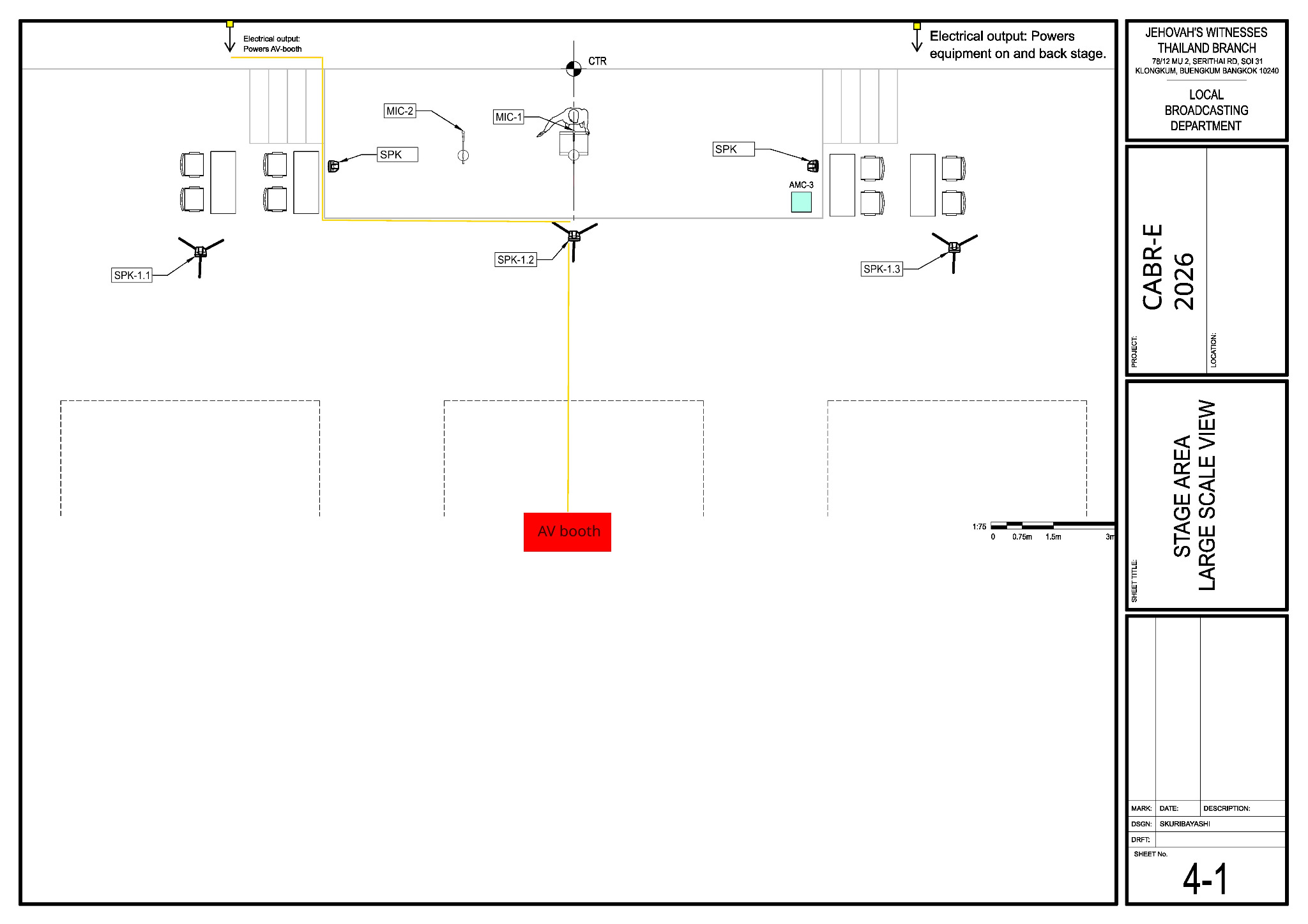

View Sheet 4-1 — stage area

View Sheet 6-1 — A/V booth wiring

View Sheet 6-2 — loudspeaker wiring

Heavy cases

Case	Main contents	Weight / handling
AHEC-2/1	Audio rack	25 kg — use a helper
PLS-1	Six passive loudspeakers	150 kg, wheeled — Trucking help on Friday
TP-1	Six speaker tripods	100 kg, wheeled — Trucking help on Friday
ALS-4	Four active loudspeakers	50 kg, wheeled
SES-1	Ten 5 kg sandbags	50 kg total — unload one at a time
MS-1	Microphone stands	30 kg, wheeled
PCS-2	Power equipment	50 kg, wheeled
CPS-1	Cable covers and mats	60 kg, wheeled

Any case over 20 kg needs enough helpers. Roll wheeled cases and close all latches before moving them.

Keyman reference

Item	Arrangement

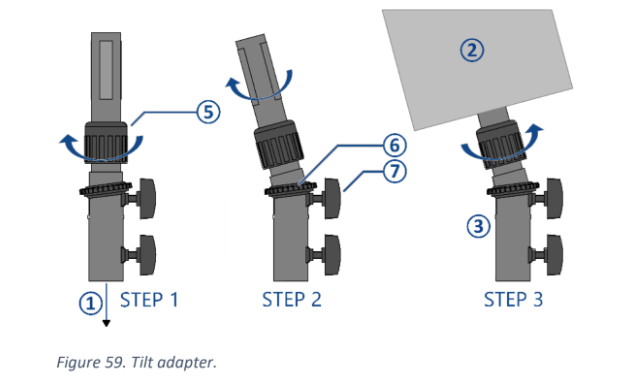

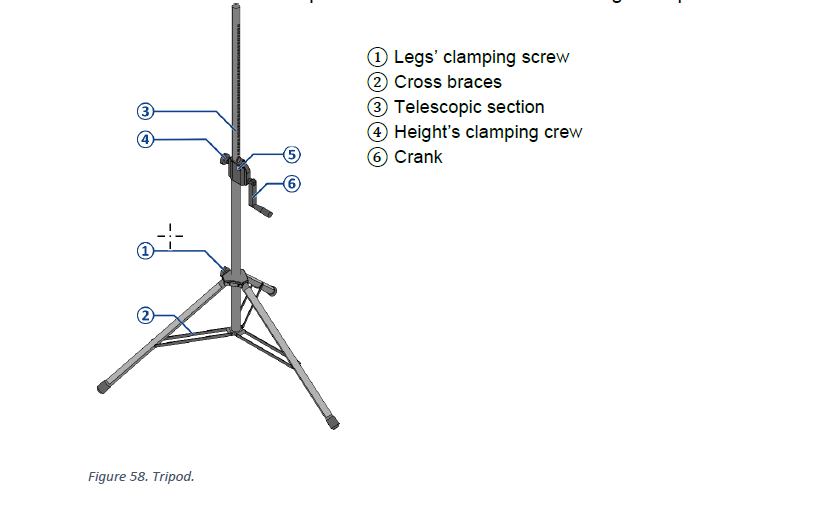

Passive speakers	Six on TP-1 tripods, about 5° down; normally 2.5 m high, except SPK-1.2 at 2.4 m.
Stage monitors	Two active speakers fed from AMC-3 return A by  XLR cable.
Lobby and Accounting	Two active speakers fed from AMC-3 return B by  XLR cable.
Microphones	MIC-1–4 use  XLR cables  to AMC-3 inputs 1–4; the venue wireless receivers use  XLR cables  to inputs 5–6.
Media computers	Each PC connects to its AIF by  USB cable; AIF-1 connects to AMC-3 input 7 by  XLR cable, and AIF-2 to input 8 by  XLR cable.
Projectors	PC-1 HDMI cable to the venue HDMI extender transmitter.
DSP outputs	XLR cables:  DSP output 3 to AMC-3 return A; output 5 to return B. Output 4 is not used.

The venue also provides at least two wireless microphones and the HDMI extender. Alex arranges the two media computers. These items are not in the BOM.

Friday transport and Saturday installation

Friday, 9 October

Friday crew: JP, Zabrina, Mike Vigil and Lilia Vigil list Friday availability. Lacey Cox is also confirmed to help with unloading.
Trucking contact: Korawat Sungmongkol, Trucking and Equipment overseer.

Time	What happens
16:30	Safety briefing at the venue (6th floor), led by Trucking; time tentative.
16:45	Kingdom Hall truck delivery. Help move the equipment to the 6th-floor hall.
17:45	Bethel (LBD) A/V truck delivery. Count the cases against the  October BOM.

Case handling:
Close all latches before moving a case. Roll wheeled cases on a clear route, use the lift, and use enough helpers for loads over 20 kg or bulky items. Wear work shoes and gloves. Move the PLS-1 and TP-1 cases with Trucking’s help. Store the cases together, closed and clear of exits in the 6th-floor hall overnight.

If a case is missing or damaged, tell JP. Photograph damage and report it to LBD: 02-821-6620 · InboxLBD.TH@jw.org.

Saturday, 10 October

Time	What happens
08:00	Safety talk and prayer, led by JP. Each keyman then reviews the team's DC-83 and the work area.
After the talk	Power, Audio Cabling, Loudspeakers, Stage and A/V Booth begin together.
Morning	Keymen guide the work. Keep exits clear and protect every floor crossing.
By 12:00	Setup is handed to Alex for commissioning, microphone adjustment, sound checks, media tests and projector tests.
By 14:00	Have the AHEC commissioned so attendees can enter.

The priority is to make the booth power, 30 m AMC-3 audio multicore (snake) cable, six passive loudspeakers with their speakON cables, and XLR stage-microphone cables ready early enough for testing.

Team pages: Audio Cabling · A/V Booth · Loudspeakers · Stage · Power

Audio cabling

Keyman 🔑	Crew
Lacey Cox	Ruben Martinez; Zabrina Bourgeois; Karina Li; Layo Kirby; TaSanee Kirby; Meyana Barnhart; Ittikorn "Joeu"; Pinja Keskinen; Bethany Mundell; Sebastien Machez

Your team routes, labels and protects the main audio cabling.

Routing and handoff:
Audio Cabling delivers labelled cable ends; the receiving team makes the equipment connections. Stage owns the on-stage XLR microphone cable runs, and Power owns mains cables.

Before starting, meet Lacey, review the team’s DC-83, and open the schematics.

DC-83 — Saturday morning safety review

Reviewed by Ralph Ord on 5 October 2026. Open the final PDF.

Safety:
Roll heavy cases and use helpers for loads over 20 kg; wear work shoes and gloves. Keep equipment switched off while pulling the multicore cable. Keep exits and walking paths clear. Accounting is beside the baptism area: agree that route with the Baptism overseer and keep cables and connectors away from wet floors.

🔌 Connector quick reference — speakON / XLR

Open this only if you need help identifying the cable ends.

Audio Cabling reference — annotated Sheet 1-1. This edited view adds cable routes and stage monitors specifically for the Audio Cabling team; these annotations are not included in the original schematics PDF. Use the original schematics for the full technical drawing set.

🗺️ View venue layout — departments and room orientation

Use this only to orient yourself to departments, partitions and room features. Use the CABR schematics for A/V placement.

🔌 View Sheet 6-2 — loudspeaker wiring and splitters

What your team does

1. Coordinate the pull with Lacey. Carefully lay the 30 m AMC-3 audio multicore (snake) cable from stage to booth; avoid sharp bends, protect connectors, and leave both ends ready for Stage and A/V Booth.
2. Run the labelled speakON loudspeaker cables to the six passive-speaker positions. LSCS-01 is the front-group speakON splitter; LSCS-02 is the rear-group splitter. Leave enough slack and hand each speakON cable to Loudspeakers before the speaker is raised.
3. At the stage end of the AMC-3 audio multicore (snake) cable, the two XLR return lines come out as return A and return B. Route return A to the stage monitors and return B to the lobby and Accounting. Label and protect the runs, then leave the cable ends for the Loudspeakers team to connect to the active speakers.
4. Make the MIC-1–4 XLR cables and AMC-3 handoff ready for Stage. Confirm their routing to AMC-3 inputs 1–4 and labels are complete; help if needed.
5. Run labelled XLR cables from the venue wireless-receiver location to AMC-3 inputs 5–6, ready for A/V Booth to connect.
6. Protect floor crossings with CPS-1 cable covers/mats or CPS-3 carpet. Inspect the edges for raised or loose areas before handing over the runs. Help trace any cable that fails its test.

Extra help: When Stage, Loudspeakers and Power finish their own work, they should check with Lacey and help Audio Cabling with the remaining cable work.

Cable routing reminders

• Unroll cables without twists or kinks; keep attached Velcro with the cable.
• Avoid running audio cables parallel to power cables where practical; cross at right angles.
• Use only as much tape as needed.
• Before handoff, confirm each cable type, label and destination against the schematic.

For the keyman

Run	Route	Drawing
AMC-3	30 m AMC-3 audio multicore (snake) cable: stage box → AHEC-2 at the booth	4-1, 6-1
Front speakers	speakON cable: Amplifier A → LSCS-01 (speakON splitter) → SPK-1.1 / 1.2 → 1.3	1-1, 6-2
Rear speakers	speakON cable: Amplifier B → LSCS-02 (speakON splitter) → SPK-2.1 / 2.2 → 2.3	1-1, 6-2
Stage monitors	XLR cable: AMC-3 return A → Stage Left → Stage Right	4-1, 6-2
Lobby / Accounting	XLR cable: AMC-3 return B → Lobby → Accounting	6-2

When the protected routes pass their tests, tell Lacey and Alex. For teardown, follow the confirmed dismantling teams and instructions: wait for the audience to clear and the briefing to finish, confirm power is off, then coil and inventory the cables.

A/V booth and commissioning

Keyman 🔑	Crew	Audio overseer
Micah Phillips	Mint Phillips; Brendan Coonce	Alex Li

Your team sets up the audio rack and the two media computers, connects the venue wireless microphones and projector link, and helps Alex test the complete system.

Media-computer plan: Alex will bring one laptop; Yuri Chaplygin will bring a second laptop as the backup.

Before starting, meet Micah, review the team’s DC-83, and open Sheet 6-1 in the schematics.

DC-83 — Saturday morning safety review

Reviewed by Ralph Ord on 5 October 2026. Open the final PDF.

Safety:
Keep cases latched while moving them; use wheels and a helper for the 25 kg AHEC-2/1 case. Set equipment on stable surfaces and keep the operator route clear. Keep systems switched off while making connections.

Current CABR-2026 Sheet 6-1 — audio headend wiring

What your team does

1. Set up the AHEC-2 audio rack and the two media computers at the A/V booth.
   🗺️ View Sheet 1-1 — A/V booth location



2. Check the labels and connect the booth/headend ends of the 30 m AMC-3 audio multicore (snake) cable, speakON passive-speaker output cables and XLR active-speaker return cables as Sheet 6-1 shows. Audio Cabling delivers the ends; the receiving teams connect their equipment.
3. Connect each media computer to its AIF by USB cable. Then run an XLR cable from AIF-1 to AMC-3 input 7 and another XLR cable from AIF-2 to input 8. Label both ends.
4. Collect the venue wireless microphones and receivers. Audio Cabling brings the XLR cables to the receiver and AMC-3 locations; connect the receivers to AMC-3 inputs 5–6.
5. Connect the PC-1 HDMI cable to the venue’s HDMI transmitter. Label the cable and secure it and the transmitter.
6. After all connection checks, Jeff Korell inspects the cords and connects booth power. Confirm final speaker positions with Corey and Alex before the sound check and keep them unchanged afterward. Micah and Alex switch on, test at low level and commission the system; test the projectors with venue staff.

For Micah, Alex and the operators

Signal	Connection / starting point
PC-1 / PC-2 audio	USB cable from each PC to its AIF; XLR cables from AIF-1 / AIF-2 to AMC-3 inputs 7 / 8. AIF Mono on; Ground Lift off; gain about 11 o'clock; media-player volume 100%. Fine-tune during the sound check.
Wireless microphones	XLR cables: venue receivers → AMC-3 inputs 5–6; adjust carefully for feedback.
Passive speakers	speakON cables: amplifier output A to the front group; output B to the rear group.
Stage monitors	XLR cable: DSP output 3 → AMC-3 return A → stage monitors.
Lobby / Accounting	XLR cable: DSP output 5 → AMC-3 return B → lobby / Accounting. Output 4 is not used.

Keep food and drinks away from the equipment tables. Personal devices can cause noise, so keep them away from audio equipment if interference is heard.

Use approved media and keep files and outlines private. Get Alex’s approval before connecting the media computers to the internet. Display the theme artwork before each session, during lunch and for about 30 minutes after the program. After the event, delete the media and outlines from both computers as directed.

Commissioning the AHEC-2

For the full commissioning procedure, open CO-160a and go to Chapter 3 → Audio Headend → AHEC-2, pages 3–4 → “Commissioning an Audio Installation.” The points below are only a quick guide.

1. Connect to the DSP. Use a laptop with an Ethernet port or adapter and an Ethernet cable. CO-160a shows the network settings and how to connect with the DLM System Control Editor.
2. Load the starting preset. Use the LBD preset or the venue/event preset if one is available.
3. Test each output zone. Use the approved audio test material and confirm that each output feeds the correct loudspeakers. If an output does not match Sheet 1-1 or 6-2, stop and correct the connection with Alex before continuing.
4. Check delays and levels. Use the click track to listen where front and rear zones overlap. Then balance the zones with pink noise and an SPL meter. CO-160a sets 82 dB-SPL as the maximum target at the seats closest to a loudspeaker.
5. Make speech clear and stable. Have several people read at the main microphone. Follow CO-160a to improve speech intelligibility and reduce feedback without making voices sound unnatural.
6. Finish the whole-system test. Confirm both media computers, all microphones, every loudspeaker zone, stage monitors, lobby/Accounting feeds and the projector link. Save the final DSP settings when commissioning is complete.

Before attendees are admitted, Alex and the operators should listen from several seating areas and agree on a simple backup plan for a failed microphone or computer.

Follow the confirmed dismantling teams and instructions. After the audience has cleared and the safety meeting has finished, Micah leads system shutdown; Jeff isolates and disconnects power before the booth team unplugs cables. Latch and inventory the cases, and return venue equipment to venue staff.

Loudspeakers

Keyman 🔑	Crew
Corey DeLoach	Melissa DeLoach; Mike Vigil; Lilia Vigil; Mike Mundell; Malachi Jenkins

Your team places and aims six passive loudspeakers, two stage monitors and the active speakers for the lobby and Accounting.

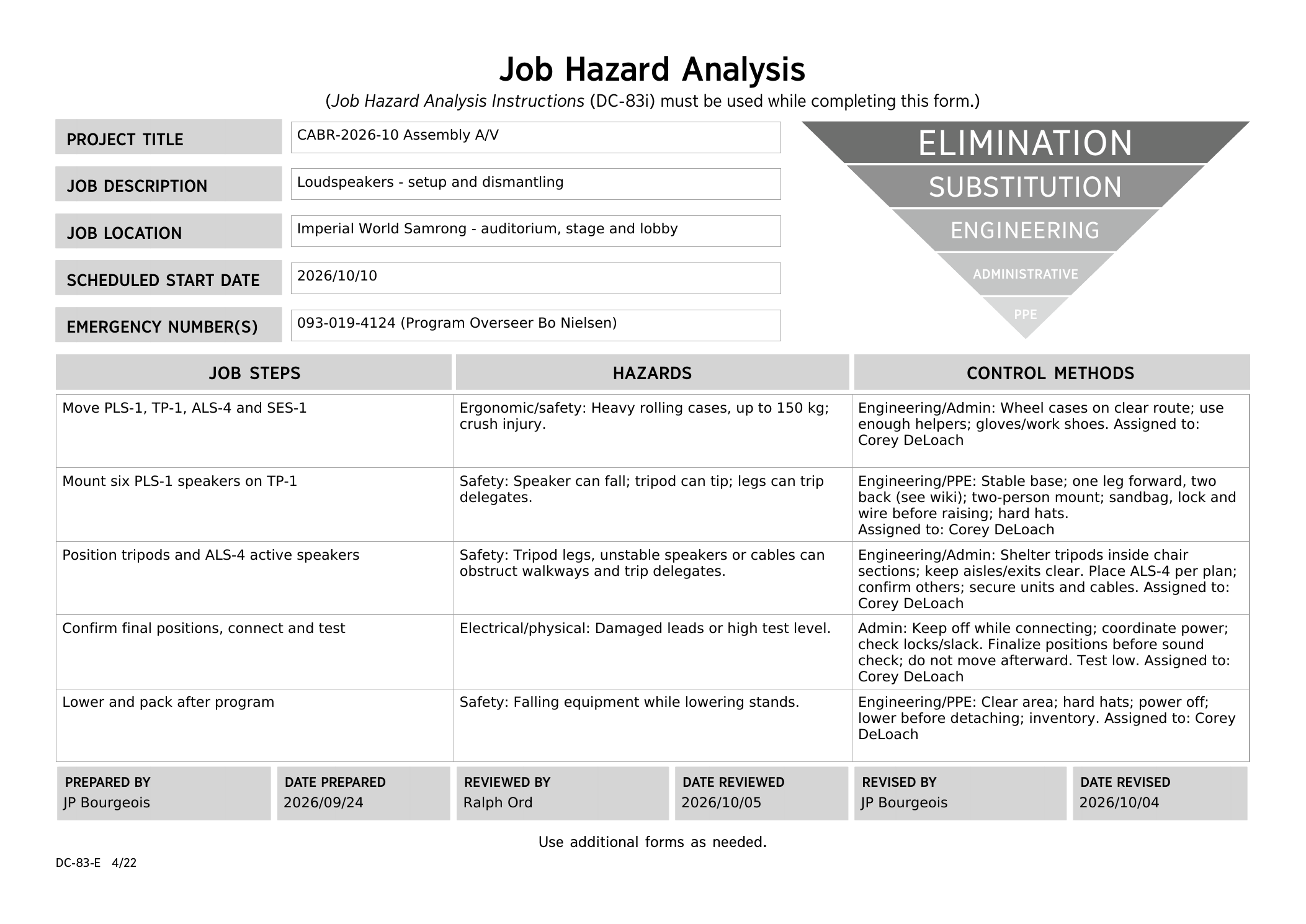

Before starting, meet Corey, review the Loudspeakers DC-83, and open Sheets 1-1, 4-1 and 6-2 in the schematics.

DC-83 — Saturday morning safety review

Reviewed by Ralph Ord on 5 October 2026. Open the final PDF.

Safety:
Use two people to mount or remove a loudspeaker. Wear hard hats while working with raised speakers. Keep hands clear of moving parts. Connect the speakON cable before raising, and check every lock is secure before letting go.

🔌 What a speakON connector looks like

What your team does

1. With Corey, mark the six passive-speaker positions from Sheet 1-1. Keep exits and walking paths clear.
2. Set up the passive speakers using the quick guide below; complete each as far as practical before moving on.
3. Place the two stage monitors on the stage floor as shown on Sheet 4-1. Agree the exact positions with Stage.
4. Place the lobby and Accounting active speakers on stable surfaces near safe wall sockets. These speakers do not use the passive-speaker tripods.
5. For all active speakers: the labelled XLR return cables start at the stage end of the AMC-3 audio multicore (snake) cable. Return A feeds the stage monitors; return B feeds the lobby and Accounting. Audio Cabling routes and labels these runs; your team connects them to the active speakers. Power handles mains connections. Confirm both handoffs and final positions with those teams before final placement and testing. Keep connections accessible and cables clear of walking paths and wet areas.
6. Test every speaker with A/V Booth and walk the seating area with Alex. Adjust audio levels only as directed.

Set up each passive loudspeaker — CO-160a quick guide

These steps come from CO-160a Chapter 3, Tripods (TP-1), pages 5–6, Figures 58–59. Use the current CABR-2026 drawings for the actual speaker position, height and aiming.

Current CABR-2026 Sheet 6-2 — loudspeaker wiring

1. Open and secure the tripod — Figure 58

• On an even, stable surface, loosen leg clamping screw ①. Open the legs until cross braces ② are horizontal, then retighten.
• Keep one leg forward and two at the back, with the loudspeaker’s tilt above the forward leg (as mentioned in the DC-83.)

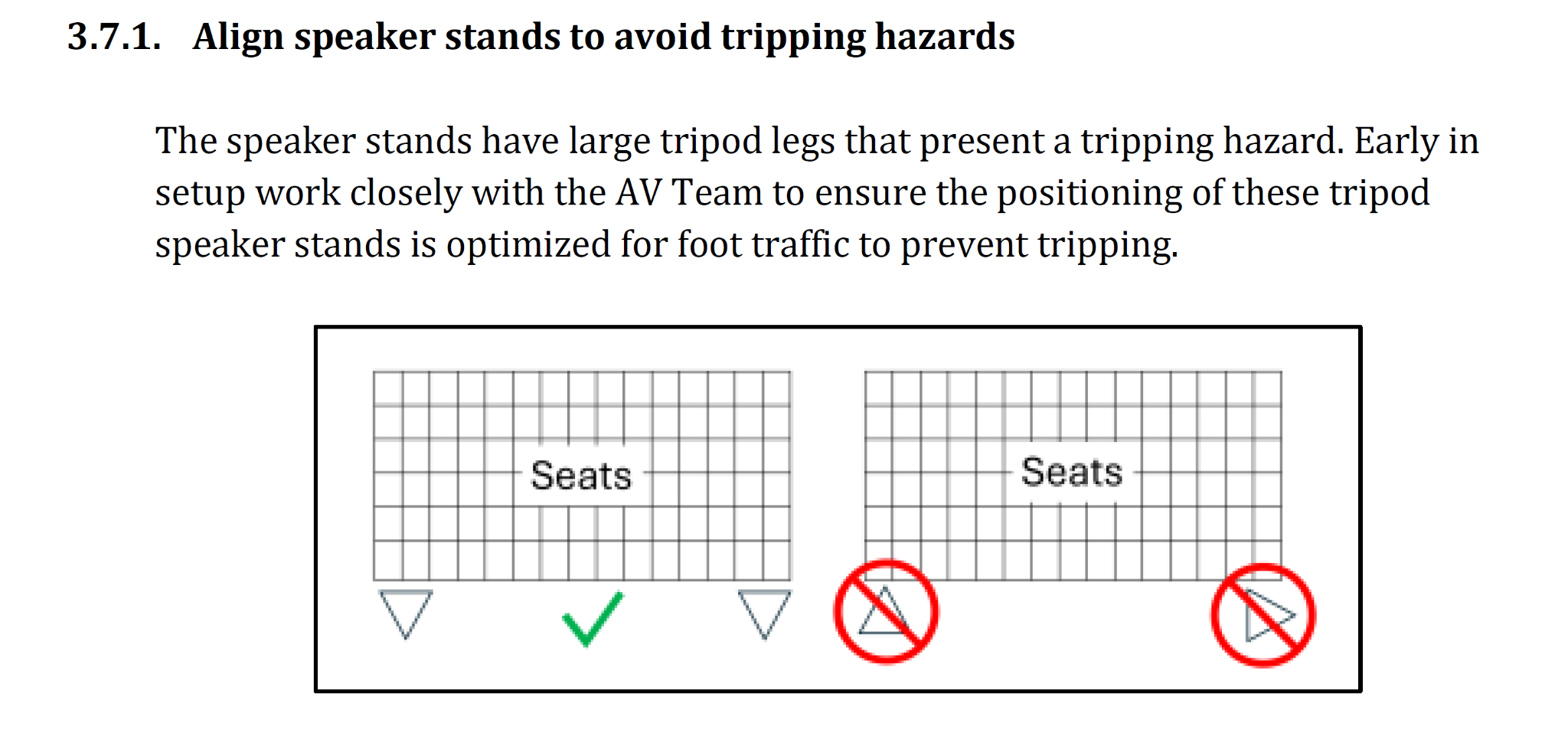

  View tripod orientation image

  This image illustrates tripod leg orientation only. The chair blocks do not represent actual placement relative to chairs; use Sheet 1-1 and Corey’s agreed layout.



• Add the 5 kg sandbags Corey assigns.

📘 View CO-160a Figure 58 — TP-1 tripod

2. Mount and aim the loudspeaker — Figure 59

• Set the adapter to about 5° downward and tighten upper clamping screw ⑦. Turn lock ring ⑤ toward OPEN.
• With two people, mount the loudspeaker on the adapter.
• Turn lock ring ⑤ toward CLOSE until secure, then aim according to the current CABR-2026 drawing.

📘 View CO-160a Figure 59 — tilt/angle adapter

3. Connect the speakON cable before raising

• Connect the correct labelled speakON cable from Audio Cabling before raising the loudspeaker.
• Leave enough slack to avoid pulling on the connector; keep the cable clear of the tripod mechanism and walkways.
• If the cable is not ready, leave the tripod lowered and return to it later.

4. Raise and lock the tripod — Figure 58

• Loosen height clamping screw ④. Hold button ⑤ while turning crank ⑥ to raise telescopic section ③ to the height in the table below.
• Release button ⑤ and continue cranking until the safety pin clicks into place.
• Tighten height clamping screw ④.
• Check the tripod, adapter, loudspeaker, sandbags, speakON cable and all locks before moving away.

For the keyman

Group	Position and height	Aim — about 5° down
Front: SPK-1.1, 1.2, 1.3	About 4 m from the first row; normally 2.5 m high, with 1.2 at 2.4 m	Toward sections A, B and C
Rear: SPK-2.1, 2.2, 2.3	About 3.5 m from the first row; 2.5 m high	Toward sections D, E and F

If a raised speaker is above a walkway, keep at least 2.1 m clear underneath or use a barrier.

When your speaker work is finished: Check with Lacey and help Audio Cabling with the remaining cable work.

Roll the heavy PLS-1, TP-1 and ALS-4 cases with enough helpers. See Safety, dismantling and references for Sunday’s confirmed assignments and sequence. Wait until the audience has left, power is off and the teardown briefing is finished. Lower the tripod completely before two people remove the loudspeaker.

Stage and microphones

Saturday stage setup

Keyman 🔑	Crew	Stage overseer
Jason Kirby	Gerald Berard; SuMalei Kirby; Matthew Chappelle; Cameron Korell	Jeff Korell

Your team prepares the stage microphones and stands, runs the on-stage XLR microphone cables, and helps participants use the microphones correctly.

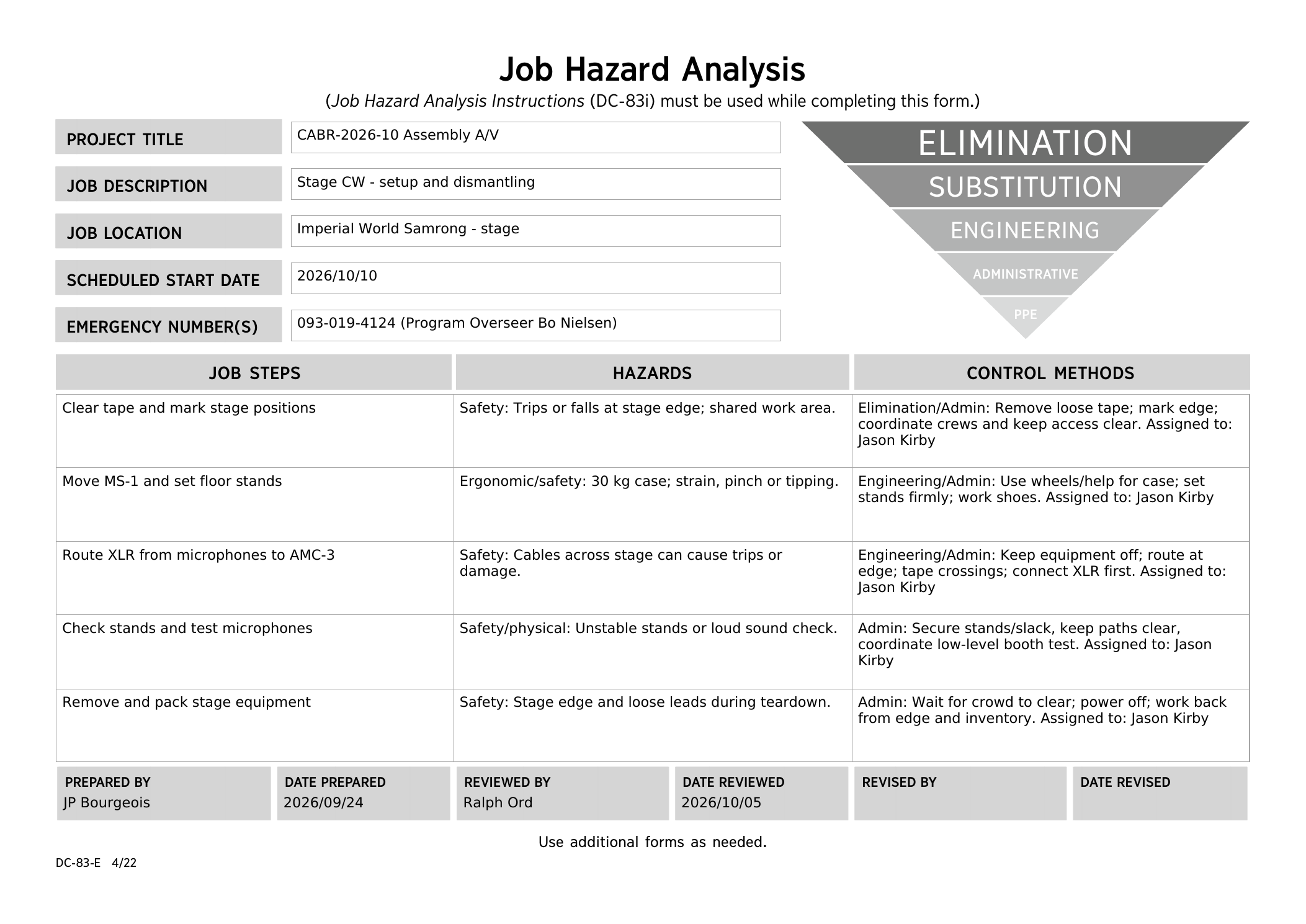

Before starting, meet Jason, review the team’s DC-83, and open Sheets 4-1 and 6-1 in the schematics.

DC-83 — Saturday morning safety review

Reviewed by Ralph Ord on 5 October 2026. Open the final PDF.

Safety:
Watch the stage edge and keep access clear. Coordinate with Power and Loudspeakers in the shared work area. Roll the 30 kg MS-1 case with helpers and wear work shoes. Keep equipment switched off while connecting the XLR cables.

🔌 What XLR connectors look like

Main reference — Sheet 4-1. Use it for microphone, lectern and stage-monitor positions and on-stage cable routes.

What your team does

1. Remove old or loose tape and mark the stage edge. Confirm the lectern, participant and microphone positions with Jeff.
2. Run the four XLR microphone cables between AMC-3 inputs 1–4 and the microphone positions. Confirm the handoff, routes and labels with Audio Cabling; ask for help if needed.
   • If the XLR cable has attached Velcro, open it and roll the cable off; do not remove the Velcro.
   • Route the XLR cables neatly along the stage edge and away from participant walking paths.
   • Where practical, do not run XLR audio cables parallel to power cables. If they must cross, cross at right angles.
   • Use only small pieces of tape where needed, and use proper cable protection anywhere an XLR cable crosses or enters a walkway.
   • Label each XLR cable at the AMC-3 end and again near its microphone position.
3. Connect each XLR microphone cable to its assigned AMC-3 input (1–4) and to the matching microphone before mounting the microphone. Set each stand firmly and tape the cable flat, away from the stage edge.
4. Agree the two stage-monitor positions with the Loudspeakers team.
5. Check stand stability and cable slack, then test every microphone position at low level with Alex and A/V Booth. Train the stage assistants on microphone placement and handoffs, including the venue wireless microphones.
6. Attend the program walk-through and follow the S-343 Stage Layout for chairman microphone positions, participant entry and exit, interviews, demonstrations and other stage cues. Before each participant goes on stage, give the required reminders from CO-160 Appendix F and confirm where the participant should stand or sit.

Sunday program assignments

Position	Morning	Afternoon
Stage key man	Jason Kirby	Matthew Chappelle
Chairman side mic (Stage right)	Gerald Berard	Corey DeLoach
Chairman side headset (Stage right)	Jason Kirby	Matthew Chappelle
Participant side mic (Stage left)	Ruben Martinez	Josh Norton
Participant side headset (Stage left)	Mike Vigil	Jeff Korell

Microphone positions

Microphone	Position	AMC-3 input
MIC-1	Lectern	1
MIC-2	Floor stand beside the lectern	2
MIC-3 and MIC-4	As Jeff directs	3 and 4
Venue wireless microphones	Roving use as assigned	Receivers on 5 and 6

Baptism arrangements and the exact positions for experiences are confirmed at the program walk-through.

When your stage setup is finished: Check with Lacey and help Audio Cabling with the remaining cable work.

Sunday dismantling

Stage dismantling keyman: Jeff Korell. Crew: Gerald Berard, SuMalei Kirby, Matthew Chappelle and Cameron Korell. See the full dismantling team roster. Wait for the audience to clear and the teardown briefing to finish; confirm power is off. Work back from the stage edge while removing microphones, tape and stands, and inventory the equipment as it is packed.

Power distribution

Keyman 🔑	Crew
Jeff Korell	April Korell

Your team safely runs mains power to the A/V booth, the stage, and the active loudspeakers. Audio Cabling handles audio cables.

Before starting, review the team’s DC-83 and Sheet 4-1 in the schematics.

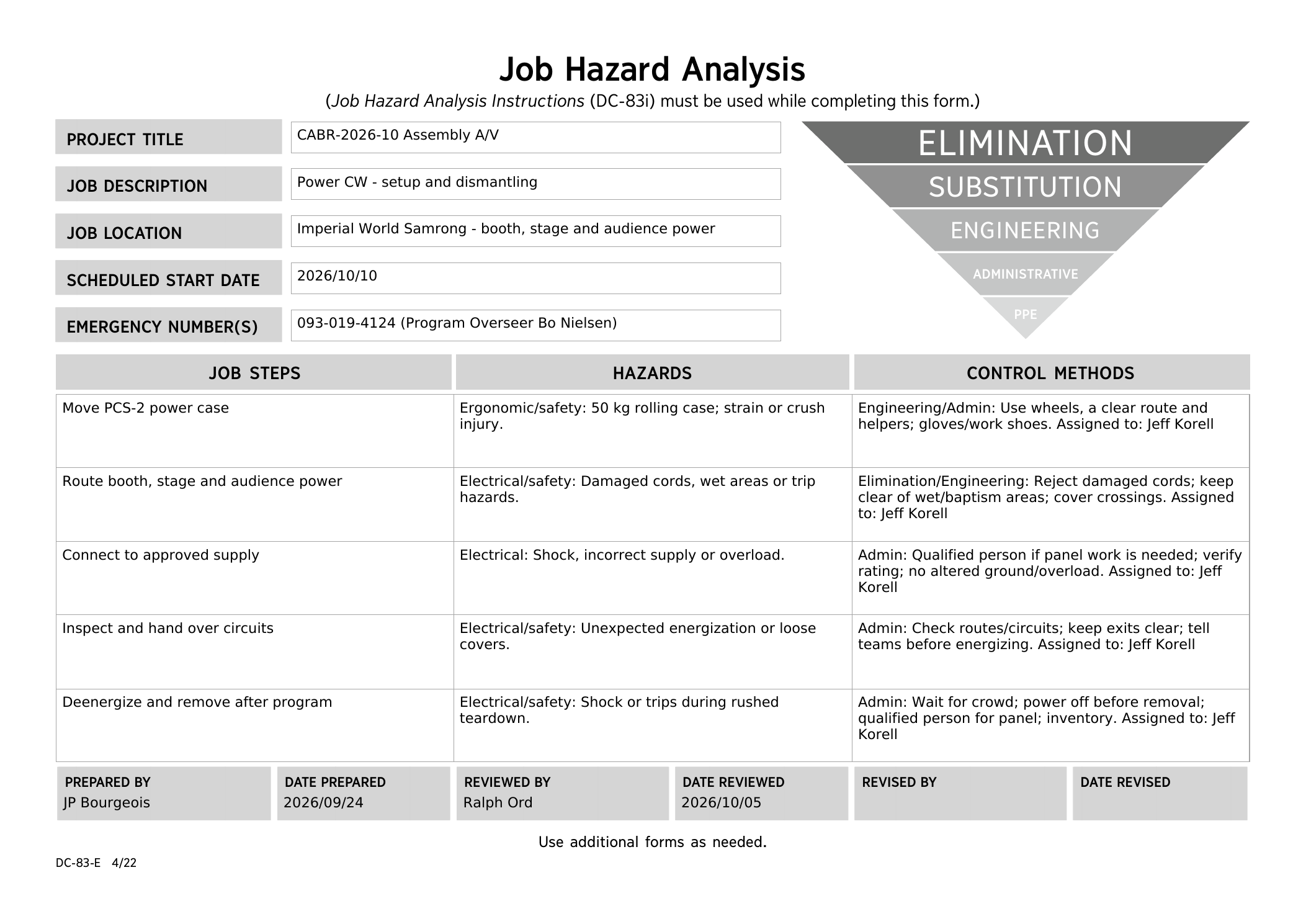

DC-83 — Saturday morning safety review

Reviewed by Ralph Ord on 5 October 2026. Open the final PDF.

Main reference — Sheet 4-1. Use it for venue outlets, stage power, stage monitors and the route to the A/V booth.

Safety:
Roll the 50 kg PCS-2 case on a clear route with helpers; wear work shoes and gloves.

Electrical work: Only a qualified person performs panel work or other work requiring a qualification. Never alter an equipment ground. Set aside damaged cords, avoid overloaded circuits, and keep power away from the baptism area and wet floors.

What your team does

1. Confirm the two approved venue outlets on Sheet 4-1 and verify supply ratings against the expected loads. Agree routes with Stage and Audio Cabling before laying mains cables through their work area.
2. From the left outlet, run the booth supply along the stage front and down the centre route to the A/V booth.
3. From the right outlet, run power for stage equipment, including both stage monitors. Coordinate final connections with Stage and Loudspeakers.
4. Confirm safe wall sockets for the lobby and Accounting speakers; run their mains supply and coordinate final connections with Loudspeakers.
5. Protect every floor crossing and inspect circuits, routes and cover edges; keep exits and participant paths clear. Tell the teams before energizing any supply. Jeff connects booth power only after A/V Booth’s connection checks.
6. When power work is safely complete, check with Lacey and help Audio Cabling with the remaining cable work and floor crossings.

Where practical, keep mains power separate from audio cables; cross at right angles where they meet.

The venue wireless receivers at the stage may also need power; confirm this with the venue technician.

Follow the confirmed dismantling teams and instructions. After the audience has cleared and the safety meeting has finished, let the teams shut down their equipment. Jeff isolates and disconnects power before cords are removed. Use a qualified person for panel work and inventory the power equipment.

Safety, dismantling and references

Your safety matters more than any deadline. The detailed guidance is in CO-160 Chapter 6, A-149, and each team's DC-83 job hazard analysis.

Contact	Name / information
Emergency	093-019-4124 — Bo Nielsen, assembly overseer
First aid	First Aid desk — Kye Hadley
Safety overseer	Ralph Ord

During delivery and setup

• Attend the safety briefing and your keyman's DC-83 review. Know the nearest exit and keep all exits and walkways clear.
• Use enough helpers for anything over 20 kg or bulky. Roll wheeled cases. Wear work shoes and gloves; use hard hats for raised-speaker work.
• Close case latches before moving equipment. Inspect cables, cover floor crossings and check cover edges for raised or loose areas.
• Keep tripods level, locked and sandbagged. Connect the speakON loudspeaker cable before raising a speaker and keep others clear.
• Report an incident, near miss, damaged item or unsafe condition immediately. Stop work if something is unsafe.
• Keep food and drinks away from A/V equipment.

Sunday dismantling

Use the dismantling teams below and follow your keyman after the teardown safety meeting.

Dismantling team	Keyman	Crew
Cabling (Video and Audio)	Lacey Cox	Ronan Gav Budd; Ruben Martinez; Layo Kirby; TaSanee Kirby; Meyana Barnhart; Marcel Lewandowski; Adam Brier; Kassander Jensen; Pinja Keskinen; Yuri Chaplygin; Bethany Mundell; Sebastien Machez
A/V Booth	Micah Phillips	Mint Phillips; Dern; Brendan Coonce
Stage	Jeff Korell	Gerald Berard; SuMalei Kirby; Matthew Chappelle; Cameron Korell
Loudspeakers	Corey DeLoach	Melissa DeLoach; Mike Vigil; Lilia Vigil; Mike Mundell; Malachi Jenkins
Packing	Jason Kirby	Zabrina Bourgeois; Karina Li; April Korell

Cabling: Also gather the rugs used to secure cable runs.

1. Note the actual program end. Let the audience leave. The teardown safety meeting and prayer begins 30 minutes after the actual end; wait for it before starting.
2. The meeting leader will name the teams, keymen, packing area and work order. Shut down equipment; Jeff isolates and disconnects power before anyone unplugs cables.
3. With two people wearing hard hats, lower each tripod completely before removing its loudspeaker. Remove stands, microphones, cables and covers without creating trip hazards. Return venue equipment to venue staff.
   • Coil XLR cables and other audio cables neatly. Do not wrap them around your elbow; avoid twists and sharp bends, and keep any attached Velcro with the cable.
4. Bring every item to the packing area. Packing checks each item against the October BOM before cases go to the truck. Put each item back in its correct box; cable colour tags match the box. Before leaving, make one quick check of the work area for anything left behind.
5. Report and photograph damage. Close every latch, and strap wheeled cases in the truck rather than relying on the wheel locks.

Reference links

• Shared crew folder
• Live roster
• DC-83 job hazard analyses
• CABR-2026 schematic PDF
• October equipment BOM
• Official English program

Thank you for your loving support and careful work.
