Audio Booth (AHEC-1) / 音响控制台 (AHEC-1)

Audio booth Team / 音响控制台小组

Item / 项目	Name / 姓名
Keyman / 负责人	To be assigned / ~~待安排~~ 待安排

\#	Name / 姓名
1
2

Purpose / 目的

Install, connect, label, and commission all equipment in the audio booth before the convention program begins.

在大会开始前安装、连接、标识并调试音响控制台的所有设备。

Required References / 参考资料

Schematics / 图纸 CO-160a

Safety Notes / 安全提醒

Keep all walkways clear. / 保持所有通道畅通。 Verify power sources before connecting equipment. / 连接设备前确认电源。 Do not energize equipment until all connections have been verified. / 确认连接无误前不要开启设备。 Maintain a clean and organized work area. / 保持工作区域整洁有序。

Setup Steps / 安装步骤

1. Position Equipment / 摆放设备

Schematics / 图纸

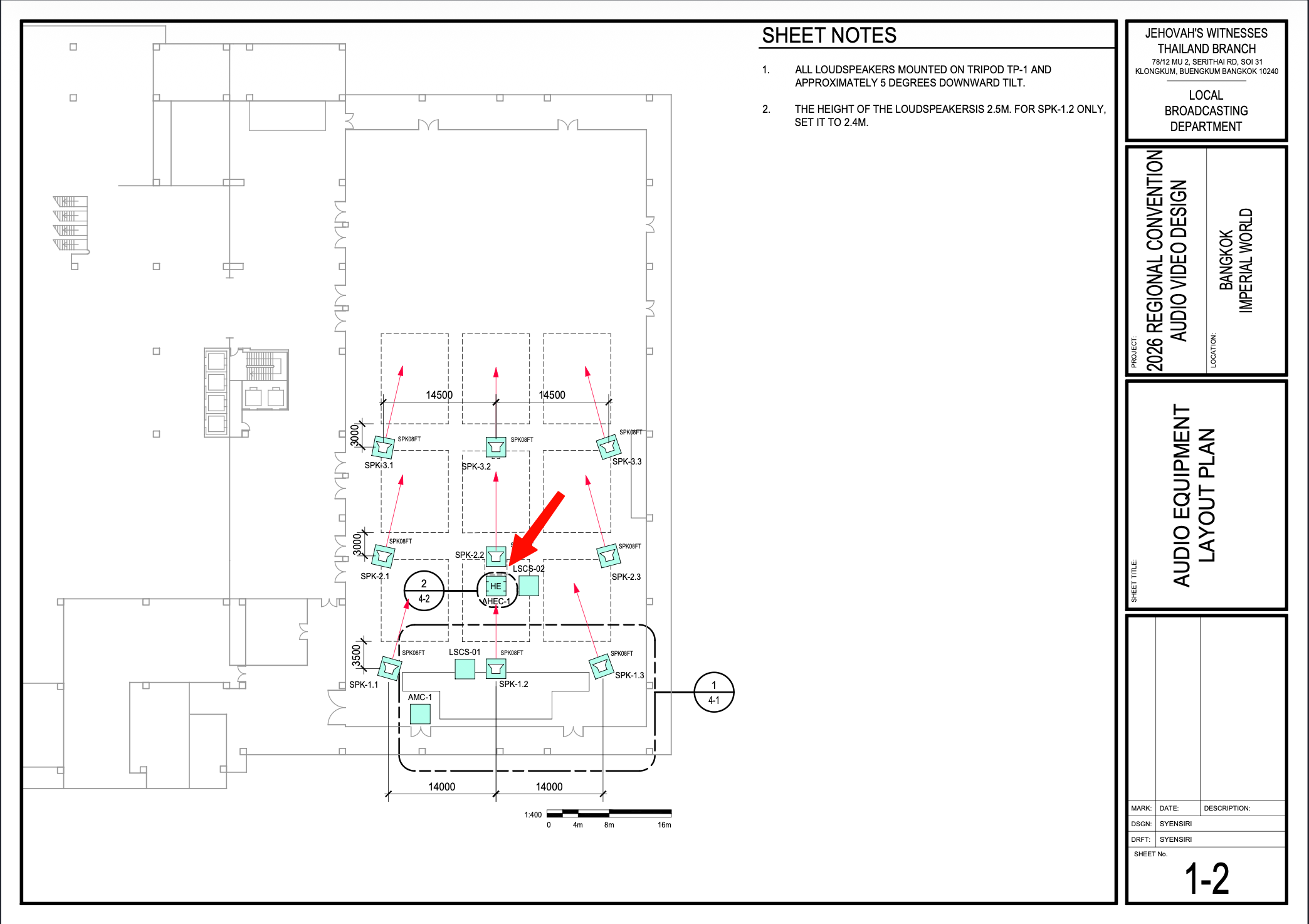

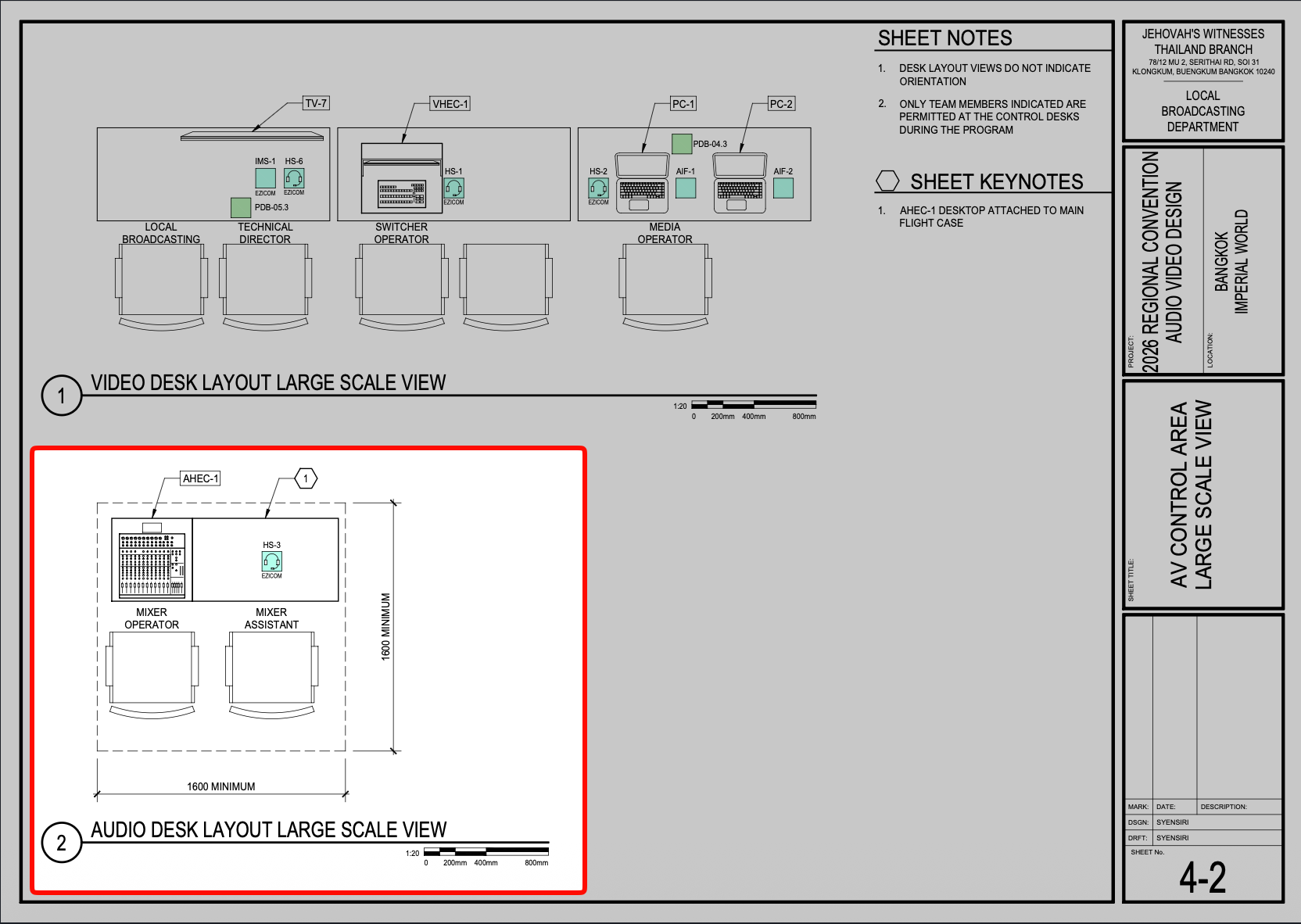

~~Page~~Pages 1-2, 4-2

View Photo / 查看图片

English

Position all equipment according to the booth layout. Verify table orientation and operator positions. Confirm adequate space for cabling and operation.

中文

按照控制台布局图摆放所有设备。确认桌面方向及操作员位置。确保有足够空间进行布线和操作。

2. Connect Audio Equipment / 连接音频设备

Schematics / 图纸

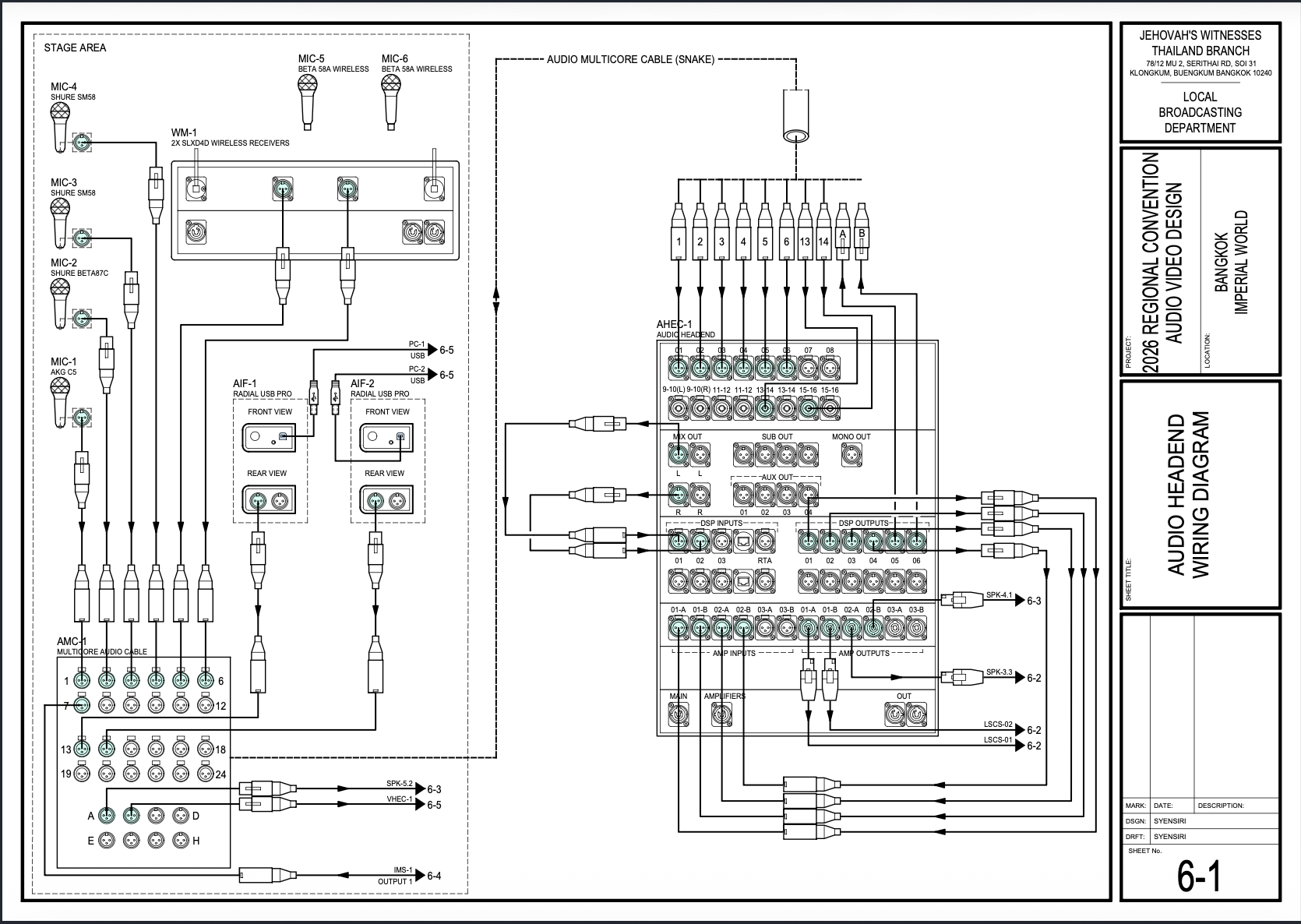

Page 6-1

View Photo / 查看图片

English

Connect the modules part of AHEC-1 Connect snake cable inputs and outputs.

中文

连接 AHEC-1 的模块部分连接snake cable输入及输出。

3. Connect Power / 连接电源

Schematics / 图纸

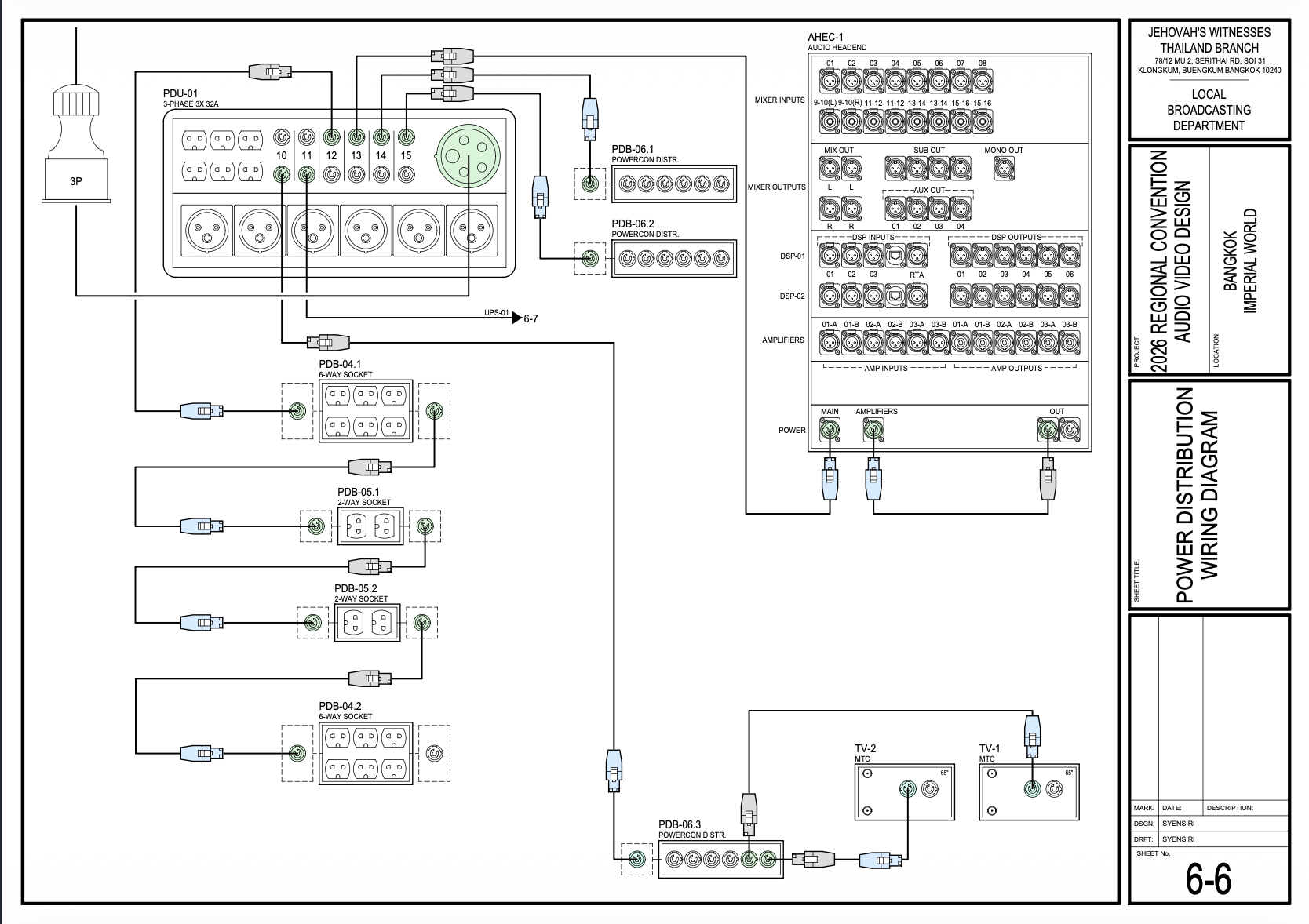

Page 6-6

View Photo / 查看图片

English

Connect the AHEC-1 power distribution equipment. Confirm with the power team we can power up the AHEC.

中文

连接AHEC-1电源分配设备。与供电组确认 AHEC 可以通电启动。

4. Commission Systems / 系统调试

Reference / 参考资料

Get CO-160a here 在此获取 CO-160a

English

Follow the CO-160a for details (AHEC-1)

中文

详情请参阅 CO-~~160a。~~160a (AHEC-1)

Completion Checklist / 完成检查表

Equipment positioned / 设备已摆放 Audio equipment connected / 音频设备已连接 Power connected / 电源已连接 System commissioned / 系统已调试

Dismantling / 拆卸

Procedure / 步骤

English

Power off all equipment. Disconnect audio cabling. Disconnect power distribution equipment. Coil and organize cables. Pack equipment in designated cases. Return all equipment to the collection area.

中文
