🇬🇧 English Instructions

Purpose
Install, protect, and label the audio multicore cable and main loudspeaker cabling according to the schematics before system commissioning.

Required References

  • Full Drawing Set: 📎 Complete PDF
  • Congregation Job Hazard Analysis (DC-85): 📁 Google Drive Folder
  • CO-160a: 📎 CO-160a — Chapter 3, Audio Signal Cables (ASC-xx), pages 7–8
  • Specific Schematics:
    • 1-2 Audio Equipment Layout Plan
    • 1-5 Cable Pathway Plan
    • 6-2 Loudspeaker Wiring Diagram
  • Event Content List: Cases AMC-1, ASC-01 ×2, CPS-1, CPS-3

Required Equipment Cases

  • AMC-1: 60 m audio multicore cable with 24x XLR inputs and 8x XLR outputs on a reel.
  • ASC-01 ×2: XLR audio cables in 5 m, 10 m, and 20 m lengths. Coordinate with the Stage Team for stage requirements.
  • CPS-1: 3-channel floor cable protectors and rubber mats. Coordinate with the Video Cabling & TVs Team.
  • CPS-3: Carpet strips for covering cables. Coordinate with the Video Cabling & TVs Team.
  • PLS-1 — Shared Equipment: speakON cables and splitters for the main loudspeakers. Coordinate with the Loudspeakers Team.

Safety Notes

⚠️ Safety & Cable Handling
• Keep walkways and emergency pathways clear.
• Use cable protectors where cables cross walkways.
• Where possible, do not run audio signal cables directly parallel to power cables; cross power cables at right angles.
• When connecting ASC-01 XLR cables, make sure the connected equipment is switched off.
• Keep the attached Velcro with ASC-01 cables.
• Do not use your elbow to wind audio signal cables.

Setup Steps

1. Install the Audio Multicore Cable (AMC-1)
Schematics: Pages 1-2 Audio Equipment Layout Plan, 1-5 Cable Pathway Plan

  • Begin at the AMC-1 starting position at front stage left shown on Drawing 1-2.
  • Route AMC-1 toward the Audio Control Area according to Drawing 1-5.
  • Keep the cable straight and organized while pulling it.
  • Confirm the route before securing or covering the cable.
🗺️ View AMC-1 Location and Cable Route (Pages 1-2, 1-5)

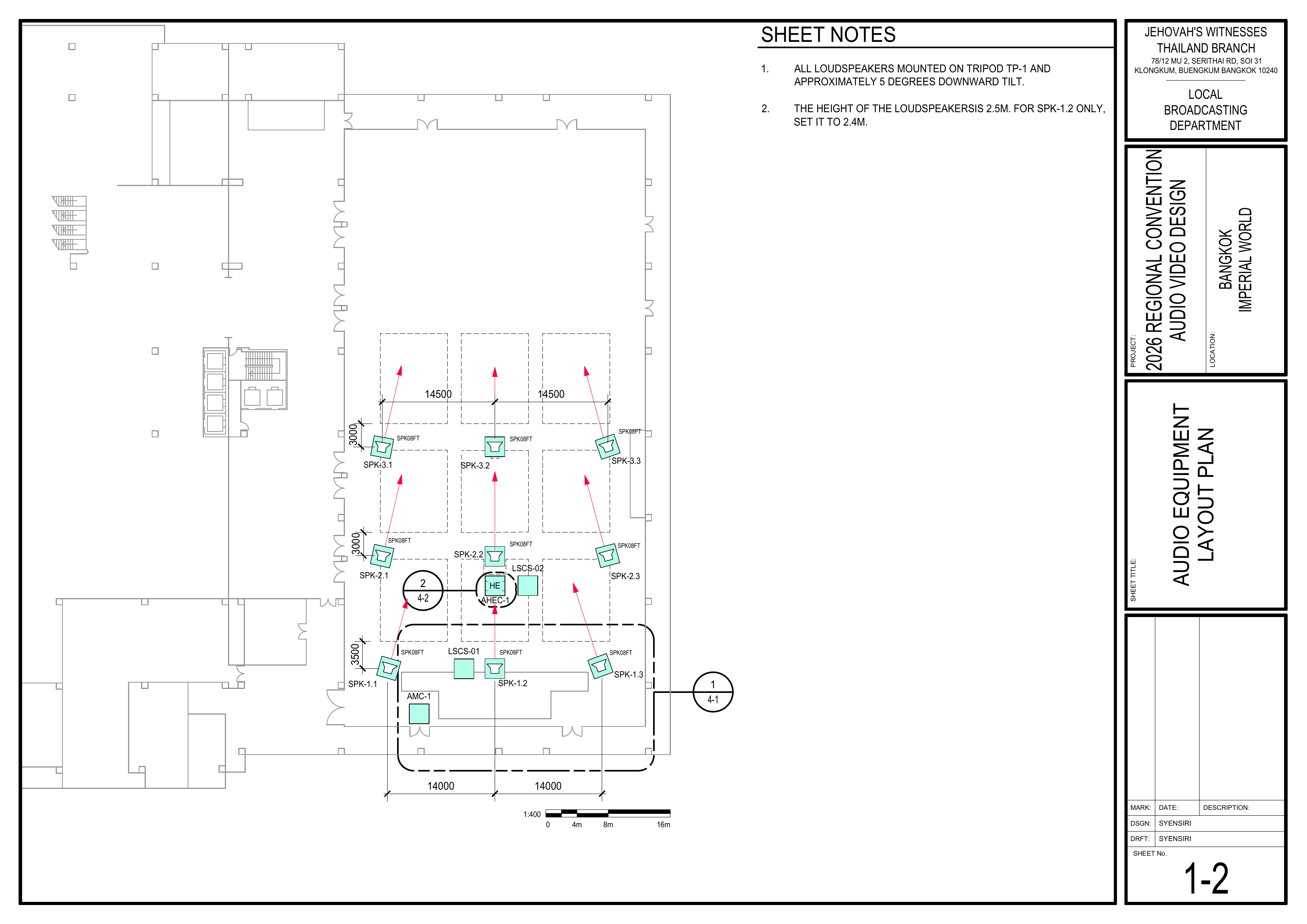

1-2 Audio Equipment Layout Plan showing loudspeaker positions, audio headend, and sound coverage direction / 音频设备布局图，显示扬声器位置、音频主控设备及声音覆盖方向

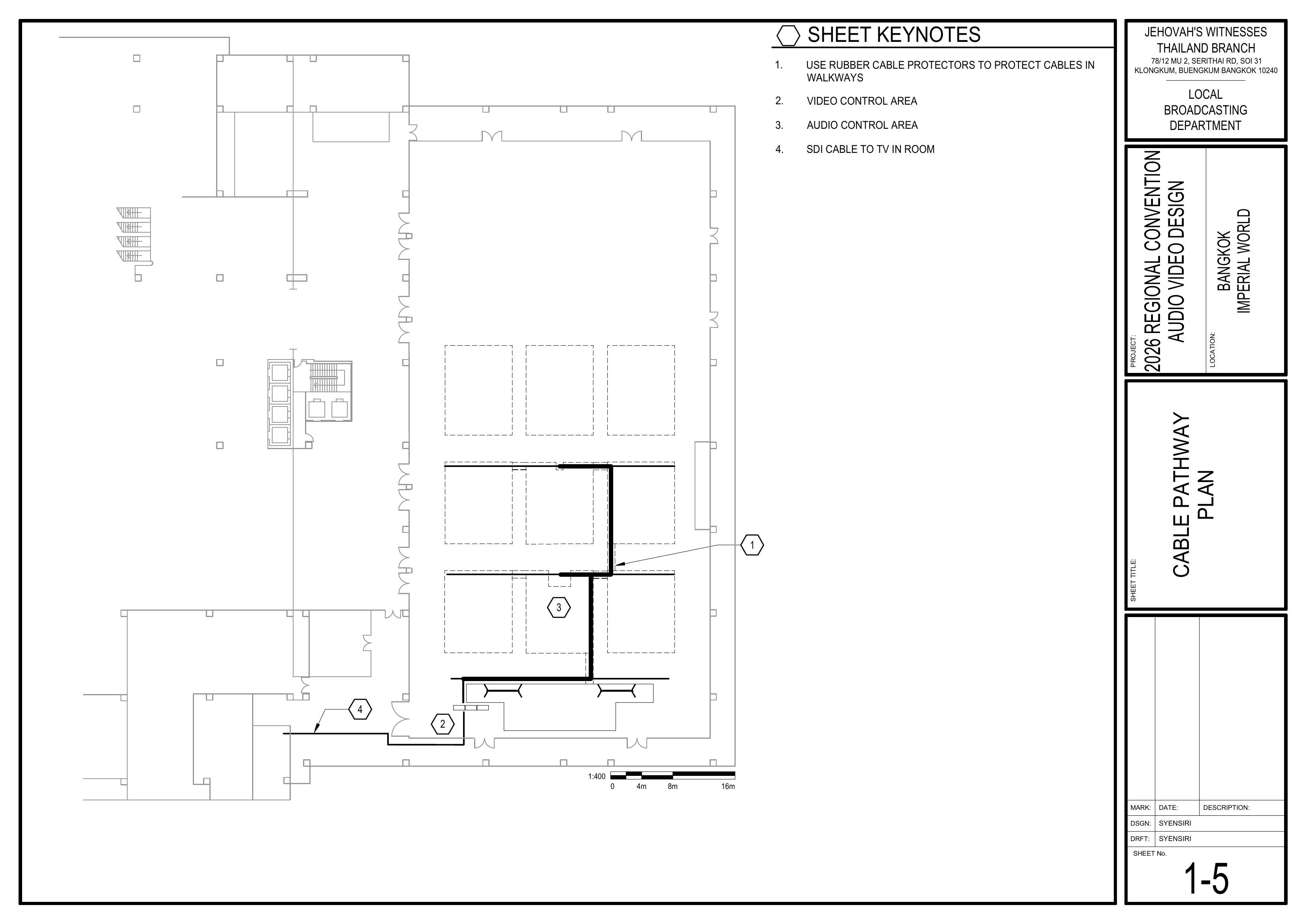

1-5 Cable Pathway Plan showing cable routes, control areas, and walkway cable protection points / 电缆路径图，显示线缆路线、控制区域及走道线缆保护位置

2. Install Main Loudspeaker Cables — Groups 1–3
Schematics: Pages 1-2 Audio Equipment Layout Plan, 1-5 Cable Pathway Plan, 6-2 Loudspeaker Wiring Diagram

  • Coordinate with the Loudspeakers Team before routing the cables.
  • Use the speakON cables and splitters from PLS-1.
  • Route the cables for Groups 1–3 according to the schematics.
  • Confirm the loudspeaker group and destination before routing each cable.
  • Leave sufficient cable at each loudspeaker for the Loudspeakers Team to make the final connection.
  • Groups 4 and 5 are handled by the Stage Team.
🗺️ View Main Loudspeaker Cabling Schematics (Pages 1-2, 1-5, 6-2)
1-2 Audio Equipment Layout Plan showing loudspeaker positions, audio headend, and sound coverage direction / 音频设备布局图，显示扬声器位置、音频主控设备及声音覆盖方向

1-5 Cable Pathway Plan showing cable routes, control areas, and walkway cable protection points / 电缆路径图，显示线缆路线、控制区域及走道线缆保护位置

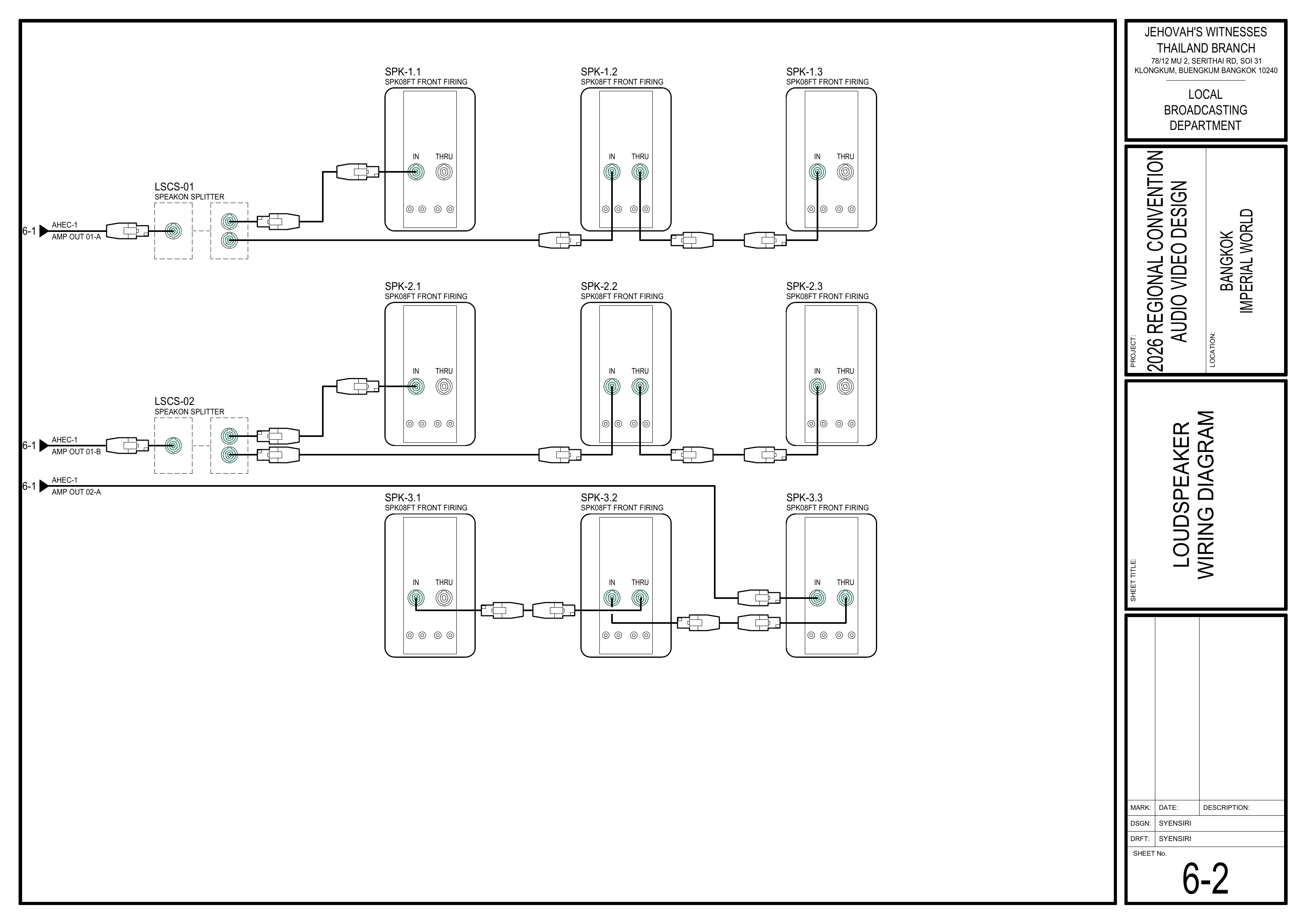

6-2 Loudspeaker Wiring Diagram showing SPK08FT loudspeaker connections, SpeakON splitters, and amplifier outputs / 扬声器接线图，显示 SPK08FT 扬声器连接、SpeakON 分配器及功放输出

3. Protect and Manage Cabling
Reference: CO-160a, Chapter 3 — Audio Signal Cables (ASC-xx), pages 7–8
Schematics: Page 1-5 Cable Pathway Plan

  • When using ASC-01 XLR cables, open the attached Velcro and unwind the cable by rolling it off. Do not remove the Velcro.
  • Where possible, avoid routing audio signal cables directly parallel to power cables; cross power cables at right angles.
  • Use floor cable protectors where cables cross walkways.
  • Use rubber mats or carpet covers where required in seating areas.
  • Coordinate shared audio and video cable routes with the Video Cabling & TVs Team.
  • When using carpet covers, secure one side first. Secure the other side after all audio and video cabling is complete.
  • Confirm all walkways and emergency pathways remain safe.
🗺️ View Cable Pathway Schematic (Page 1-5)
1-5 Cable Pathway Plan showing cable routes, control areas, and walkway cable protection points / 电缆路径图，显示线缆路线、控制区域及走道线缆保护位置

4. Label and Final Check

  • Label audio cables so their destination or use is clear.
  • Confirm AMC-1 and Groups 1–3 loudspeaker cable routes match the schematics.
  • Check that cables are neat, protected, and do not create trip hazards.
  • Confirm audio signal cable routes are separated from parallel power runs where possible.
  • Coordinate with the Audio Crew and Loudspeakers Team before system commissioning.

Completion Checklist

  • AMC-1 installed according to the schematics
  • Groups 1–3 loudspeaker cables routed
  • Loudspeaker cabling coordinated with the Loudspeakers Team
  • Groups 4–5 cabling left for the Stage Team
  • Audio cables labeled
  • Audio and power cable routes separated where possible
  • Walkway crossings protected
  • Seating-area cabling protected where required
  • Shared cable protection coordinated with the Video Cabling & TVs Team
  • Walkways and emergency pathways safe
  • Keyman inspection completed

Dismantling

  • Wait for the department briefing and prayer 30 minutes after the program ends on Sunday before dismantling.
  • Coordinate with the Loudspeakers Team before removing Groups 1–3 speakON cables.
  • Coordinate with the Video Cabling & TVs Team before removing shared cable protection.
  • Carefully remove carpet covers, rubber mats, and floor cable protectors.
  • Disconnect and carefully coil the Groups 1–3 loudspeaker cables.
  • For ASC-01 XLR cables handled by this team:
    • Wind each cable carefully without using your elbow.
    • Secure the cable with its attached Velcro.
  • Carefully wind AMC-1 back onto its reel.
  • Gather remaining audio cables and bring them to the designated equipment area.
  • Confirm no audio cables or cable-protection materials remain in the seating area.
  • Note for team leader: Use the Bill of Materials (BOM) to cross off every box or case before it is brought to the truck:
    • AMC-1
    • ASC-01 ×2 — coordinate with the Stage Team
    • CPS-1 — coordinate with the Video Cabling & TVs Team
    • CPS-3 — coordinate with the Video Cabling & TVs Team

🇨🇳 中文说明

目的
按照图纸铺设、保护并标识音频多芯线缆和主扩声扬声器线缆，为系统调试做好准备。

参考资料

  • 完整图纸： 📎 完整 PDF 文件
  • 《会众工作危险性分析》(DC-85)： 📁 Google Drive 文件夹
  • CO-160a： 📎 CO-160a — 第 3 章，Audio Signal Cables (ASC-xx)，第 7–8 页
  • 相关图纸：
    • 1-2 音频设备布局图
    • 1-5 电缆路径图
    • 6-2 扬声器接线图
  • 大会设备清单： 设备箱 AMC-1、ASC-01 ×2、CPS-1、CPS-3

所需设备箱

  • AMC-1： 60 米音频多芯线缆，设有 24 个 XLR 输入和 8 个 XLR 输出，安装在线盘上。
  • ASC-01 ×2： 5 米、10 米和 20 米 XLR 音频线缆。讲台所需线缆请与讲台组协调。
  • CPS-1： 三槽地面电缆盖板和橡胶垫。使用时请与视频布线及电视组协调。
  • CPS-3： 用于覆盖线缆的地毯压线条。使用时请与视频布线及电视组协调。
  • PLS-1 — 共用设备： 主扩声扬声器使用的 speakON 线缆和分配器。铺设时请与扬声器组协调。

安全提醒

⚠️ 安全与线缆处理
• 保持通道和紧急疏散路线畅通。
• 线缆穿过通道时必须使用电缆保护装置。
• 在可行的情况下，不要让音频信号线与电源线直接平行铺设；需要交叉时，应以直角交叉。
• 连接 ASC-01 XLR 音频线前，确认所连接的设备已经关闭。
• ASC-01 线缆原有的魔术贴应保留在线缆上。
• 盘绕音频信号线时不要使用手肘绕线。

安装步骤

1. 铺设音频多芯线缆 (AMC-1)
图纸：1-2 音频设备布局图、1-5 电缆路径图

  • 从图纸 1-2 所示的讲台前区左侧 AMC-1 起点开始。
  • 按照图纸 1-5 所示路线向音频控制区铺设 AMC-1。
  • 拉线过程中保持线缆平整有序。
  • 固定或覆盖线缆前确认走线路径。
🗺️ 查看 AMC-1 起点及电缆路线（图纸 1-2, 1-5）
1-2 Audio Equipment Layout Plan showing loudspeaker positions, audio headend, and sound coverage direction / 音频设备布局图，显示扬声器位置、音频主控设备及声音覆盖方向

1-5 Cable Pathway Plan showing cable routes, control areas, and walkway cable protection points / 电缆路径图，显示线缆路线、控制区域及走道线缆保护位置

2. 铺设第 1–3 组主扩声扬声器线缆
图纸：1-2 音频设备布局图、1-5 电缆路径图、6-2 扬声器接线图

  • 铺设前与扬声器组协调。
  • 使用 PLS-1 中的 speakON 线缆和分配器。
  • 按照图纸铺设第 1–3 组扬声器线缆。
  • 铺设每条线缆前确认扬声器组别和连接位置。
  • 在每个扬声器位置预留足够长度，方便扬声器组完成最后连接。
  • 第 4 和第 5 组由讲台组负责。
🗺️ 查看主扩声扬声器布线图纸（图纸 1-2, 1-5, 6-2）
1-2 Audio Equipment Layout Plan showing loudspeaker positions, audio headend, and sound coverage direction / 音频设备布局图，显示扬声器位置、音频主控设备及声音覆盖方向

1-5 Cable Pathway Plan showing cable routes, control areas, and walkway cable protection points / 电缆路径图，显示线缆路线、控制区域及走道线缆保护位置

6-2 Loudspeaker Wiring Diagram showing SPK08FT loudspeaker connections, SpeakON splitters, and amplifier outputs / 扬声器接线图，显示 SPK08FT 扬声器连接、SpeakON 分配器及功放输出

3. 保护和整理线缆
参考资料：CO-160a，第 3 章 — Audio Signal Cables (ASC-xx)，第 7–8 页
图纸：1-5 电缆路径图

  • 使用 ASC-01 XLR 音频线时，打开线缆原有的魔术贴，以滚开的方式展开线缆。不要把魔术贴从线缆上取下。
  • 在可行的情况下，避免音频信号线与电源线直接平行铺设；需要交叉时，应以直角交叉。
  • 线缆穿过通道时使用地面电缆盖板。
  • 座位区域根据需要使用橡胶垫或地毯盖板。
  • 音频和视频线缆共用路线时，与视频布线及电视组协调。
  • 使用地毯盖板时，先固定一侧。等所有音频和视频布线完成后再固定另一侧。
  • 确保所有通道和紧急疏散路线保持安全畅通。
🗺️ 查看电缆路径图（图纸 1-5）
1-5 Cable Pathway Plan showing cable routes, control areas, and walkway cable protection points / 电缆路径图，显示线缆路线、控制区域及走道线缆保护位置

4. 标识并进行最终检查

  • 标识音频线缆，使其连接位置或用途清楚可辨。
  • 确认 AMC-1 和第 1–3 组扬声器线缆走线符合图纸。
  • 确认线缆整齐、受到保护，并且不会造成绊倒危险。
  • 在可行的情况下，确认音频信号线没有与电源线直接平行铺设。
  • 系统调试前，与音频组和扬声器组协调确认。

完成检查表

  • AMC-1 已按照图纸铺设
  • 第 1–3 组扬声器线缆已铺设
  • 已与扬声器组协调扬声器布线
  • 第 4–5 组留给讲台组负责
  • 音频线缆已标识
  • 音频线和电源线在可行的情况下已分开铺设
  • 穿过通道的线缆已加以保护
  • 座位区域线缆已按需要加以保护
  • 已与视频布线及电视组协调共用的线缆保护
  • 通道和紧急疏散路线安全畅通
  • 负责人已检查确认

拆卸

  • 在星期日节目结束 30 分钟后，等待整个部门的简短会议和祷告后再开始拆卸。
  • 移除第 1–3 组 speakON 线缆前，先与扬声器组协调。
  • 移除共用线缆保护材料前，先与视频布线及电视组协调。
  • 小心移除地毯盖板、橡胶垫和地面电缆盖板。
  • 断开并小心盘绕第 1–3 组扬声器线缆。
  • 本组处理 ASC-01 XLR 音频线时：
    • 小心盘绕每条线缆，不要使用手肘绕线。
    • 使用线缆原有的魔术贴固定。
  • 将 AMC-1 小心卷回线盘。
  • 收集其余音频线缆并带到指定设备集合区域。
  • 确认座位区域没有遗留音频线缆或线缆保护材料。
  • 组长注意： 在将每个箱子或设备箱搬上卡车前，请使用物料清单 (BOM) 核对并划掉每一项：
    • AMC-1
    • ASC-01 ×2 — 与讲台组协调
    • CPS-1 — 与视频布线及电视组协调
    • CPS-3 — 与视频布线及电视组协调
