Stage Layout Setup / 讲台布局安装

Stage Team / 讲台组

Item / 项目Name / 姓名
Keyman*To be assigned / 待安排*
#Name / 姓名
1
2
3
4
5
6
7
8
9
10

Purpose / 目的

Prepare the stage area, install microphone cabling, mark participant positions, and secure all stage cables according to the Schematics before audio testing and walk-throughs.

根据图纸准备讲台区域、安装麦克风线缆、标记节目参与者位置，并固定所有讲台线缆，为音频测试和走位练习做好准备。

References / 参考资料

  • Schematics / 图纸
    • Page 4-1 Stage Area Equipment Layout
    • Page 6-1 Audio Headend Wiring Diagram
    • Page 6-5 Video Display Wiring Diagram

Safety Notes / 安全提醒

  • Tape down and cover all cables. / 所有线缆都要用胶带固定并覆盖。
  • Do not leave loose cables where participants will walk. / 节目参与者行走的位置不要留下松散线缆。
  • Keep liquids away from all equipment. / 所有设备附近禁止放置液体。

Setup Steps / 安装步骤

1. Prepare the Stage / 准备讲台

Schematics / 图纸

  • Page 4-1
View Schematics / 查看图纸


English

  • Remove old or distracting tape from the stage.
  • Check the stage surface for trip hazards.
  • Confirm the stage layout follows the Schematics.
  • Keep the area clear for Audio Crew and Video Crew work.

中文

  • 移除讲台上旧的或容易分散注意力的胶带。
  • 检查讲台表面是否有绊倒危险。
  • 确认讲台布置符合图纸。
  • 保持区域畅通，方便音频组和视频组工作。

2. Pull XLR Cables for Microphones / 铺设麦克风 XLR 线缆

Schematics / 图纸

  • Page 4-1

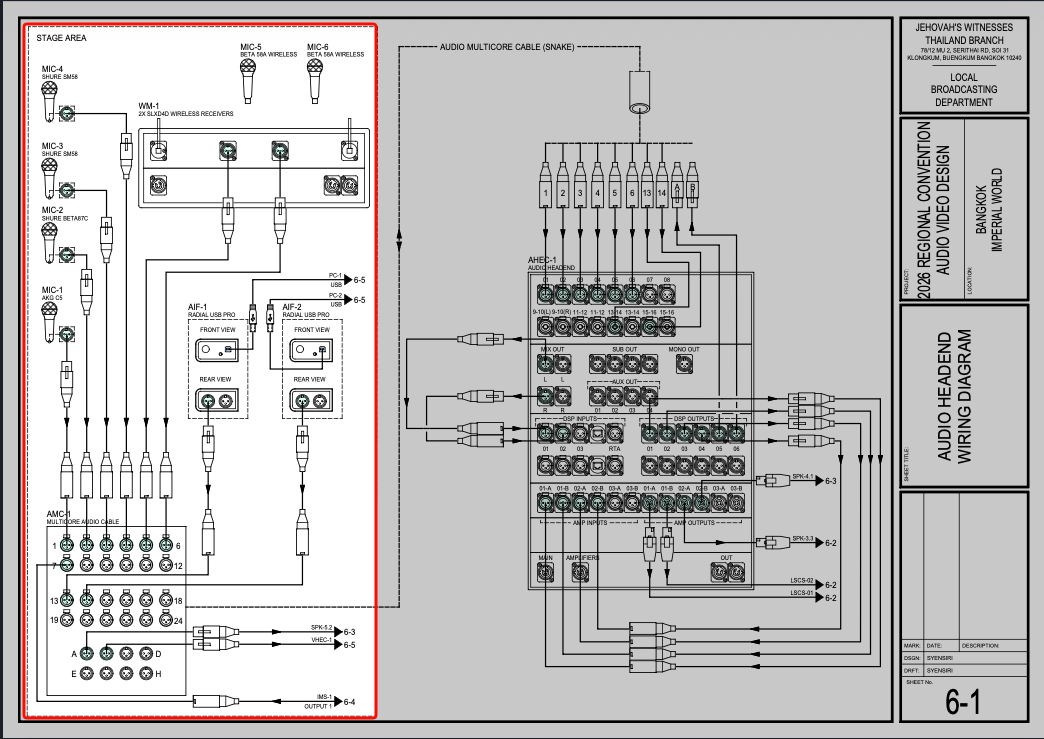

  • Page 6-1 “Stage Area”
View Schematics / 查看图纸



Important / 重要

When placing a microphone on a stand, have the XLR cable connected already.

将麦克风安装到麦克风架上之前，先连接好 XLR 线缆。

English

  • Pull XLR cables for microphones to the snake cable.
  • Route cables neatly along the front edge of the stage.
  • Keep cables away from participant positions and walking paths.
  • Secure cables with tape as they are installed.

中文

  • 将麦克风 XLR 线缆拉到多芯音频线位置。
  • 沿讲台前缘整齐布设线缆。
  • 线缆应远离节目参与者的位置和行走路线。
  • 安装过程中使用胶带固定线缆。

3. Label Microphone Cables / 标识麦克风线缆

Schematics / 图纸

  • Page 6-1
View Schematics / 查看图纸


English

  • Attach a tag to each cable identifying its microphone assignment or use.
  • Place one tag at the snake cable end.
  • Place another tag approximately 2 meters from the microphone.

中文

  • 在每条线缆上贴上标签，注明对应的麦克风或用途。
  • 在线缆连接多芯音频线（Snake）的那一端贴一个标签。
  • 在距离麦克风约 2 米的位置再贴一个标签。

4. Position Microphones / 摆放麦克风

Schematics / 图纸

  • Page 4-1
View Schematics / 查看图纸


English

  • Place microphones according to the stage layout and program needs.
  • Confirm lectern microphone position.
  • Confirm chairman microphone position.
  • Confirm participant microphone positions.
  • Coordinate with Audio Crew for testing.

中文

  • 按照讲台布置和节目需要摆放麦克风。
  • 确认讲台麦克风位置。
  • 确认主席麦克风位置。
  • 确认节目参与者麦克风位置。
  • 跟音频组协调测试。

5. Mark Participant Positions / 标记节目参与者位置

Schematics / 图纸

  • Page 4-1
View Schematics / 查看图纸


English

  • Put tape down where interviews (stage left) and watchtower comments will stand.
Put tape down for Watchtower comments positions. Mark where microphone stands should be placed. Keep markings discreet but visible to participants.

中文

  • 在访谈人员站立的位置贴胶带标记。
标记《守望台》评论人员的位置。在采访人员（讲台台左侧）和守望台评论员站立的位置贴上标记胶带。 标记麦克风架应该摆放的位置。 标记要低调，但节目参与者要看得清楚。

Dismantling / 拆卸

Procedure / 步骤

English

  1. Wait for the department briefing and prayer before dismantling.
  2. Remove stage microphones and stands.
  3. Disconnect XLR cables from microphones and snake cable.
  4. Remove tape and carpet covers carefully.
  5. Coil and label all cables.
  6. Gather all stage equipment and bring it to the designated area.
  7. Check the stage for forgotten tape, cables, microphones, or accessories.

中文

  1. 等待部门简短会议和祷告后再开始拆卸。
  2. 拆下讲台麦克风和麦克风架。
  3. 从麦克风和多芯音频线拆除 XLR 线缆。
  4. 小心移除胶带和地毯覆盖物。
  5. 整理并标识所有线缆。
  6. 将所有讲台设备带到指定区域。
  7. 检查讲台是否遗留胶带、线缆、麦克风或配件。
